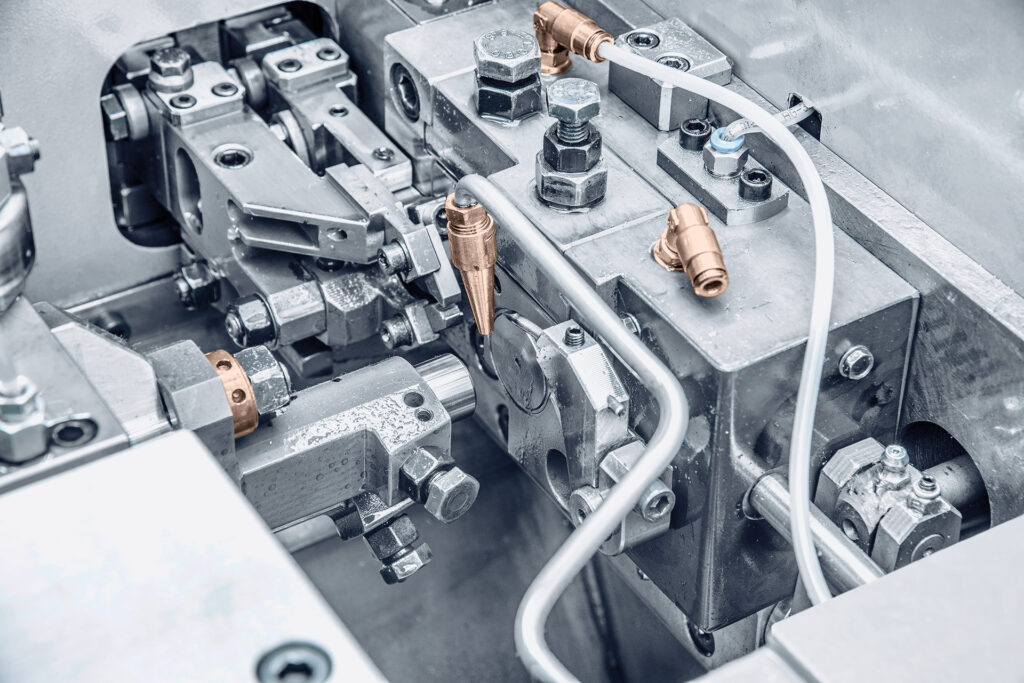

CS 001
CS 002
CS 003
CS 005
The 1 Die 2 Blow Headers is a header designed to manufacture screw blanks as well as solid and semi tubular parts. Changeover times are minimized thanks to the quick change system and to the motorized adjustment which allow to repeat the job in the future.
- Minimized changeover times
- Very high precision of cutoff blank (+/– 0.05 mm)
- Higher cutoff quality
- Profitably also for small batches
- Pre-heating induction system available
You can find more machine videos from Carlo Salvi on the Carlo Salvi YouTube channel:
Carlo Salvi single-die double-impact presses
The Carlo Salvi single-die double-impact presses have been developed using the latest and most advanced technologies for maximum productivity in cold forming.
You prefer to study details on paper?
- Better molecular structure: the relative heading speed is slow and therefore, contact between heading tool and material to be processed is very smooth. Upset process of fibers is optimized. Specific metallurgical tests have proven the better quality of components cold headed with the Carlo Salvi toggle action.
- Tool impacts wire to be upset with a very slow speed: tool life is improved to a great extent and therefore manufacturing costs with Carlo Salvi equipment are much more affordable as opposed to those on conventional machines.
- Less wear on crankshaft: heading pressure is completely supported by the toggle and not by the crankshaft.
2. Quick change system
- Die block unit
- Punch block unit
- Transfer finger units
- Cutter unit
- While machine is producing, the operator can easily and comfortably set up the next job due to the centering jigs supplied for this purpose.
- When the new job has to be set-up on machine simply remove the existing tooling and replace it with the tooling already prepared. Avoid waste of time and do not keep machine idle.
- Tool set-up outside of machine dramatically reduces changeover times and consequently manufacturing costs and waste of time.
- The position of all mechanisms is electronically controlled and displayed on the touch screen: type in the job number which has been stored previously and all mechanisms will disengage and engage automatically the machine for the new job.
- The machine adjustment speed performed with inverter controI electric motor enables the operator to approach punches to die area very slowly so that finger timing is made easier and prevents possible breakages.
- Hydraulic release of the backing screws
- Positioning K.O. pins inside dies
- Adjust the correct wire feed length
- Adjust wire stop position
- Linear wire feed does not require wire feed rolls and/or wire stops. Changeovers are faster and costs are minimized.
- Wire feed is more accurate. Wire is not subject to any stresses due to wire stops as it happens on conventional headers.
- Wire pulling grippers cover a wide range of wire diameters. High accuracy and a perfect cut-off
quality is obtained with an absolute consistency, within 0.05 mm.
Enables to process materials such as titanium or high alloy steels.
- Installed inside the die block, very near to the cutting station
- Heat wire up to 1,000 °C with pyrometer monitoring assuring process stability
- Scope consists of high frequency signal generator, induction coil, chiller unit, optical pyrometer and cooling unit
Technical data
Number of dies/punches
Max. Cut-off length
mm
Max. head diameter
mm
mm
Min. and max. wire diameter
mm
Max. speed
pce/min
Max. heading tonnage
kN
1/2
35
6.5
22
0.6 – 3¹ 2 – 5¹ 3 – 7¹ / 3 – 6.5² 6 – 14¹ / 6 – 12.7²
660
60
–
¹ with a strength of 600 N/mm² (cold)
² with a strength of 1,000 N/mm² (warm)
